eHOST — Extensible Human Oracle Suite of Tools

eHOST is an open source desktop application for manually annotating text and for turning several annotators’ work into a single, agreed-upon gold standard. It was originally built for clinical and biomedical natural language processing, and it is still used mainly for building reference standards for NLP systems.

This site documents the actively maintained fork at github.com/jianlins/ehost, a rebuilt and extended version of the original eHOST. The current release is 1.39.

New to eHOST? Start with 1.1 Prerequisites and work through section 1 — it walks you from an empty folder to your first saved annotation.

What eHOST does

A typical project

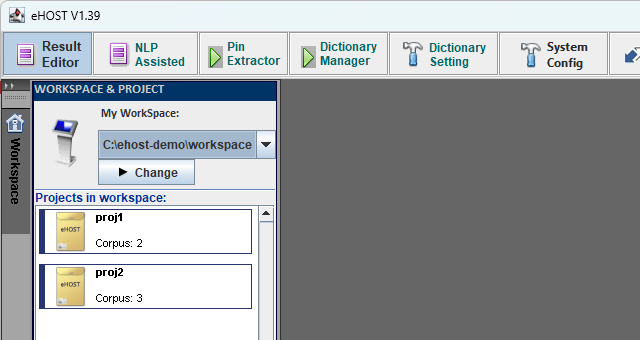

1. Pick a workspace and create a project — 1.3 Assign Workspace and Project
2. Load your documents into the project corpus — 1.4 Load Documents
3. Define the schema: classes, attributes and relationships — 1.5.1 Define Classes

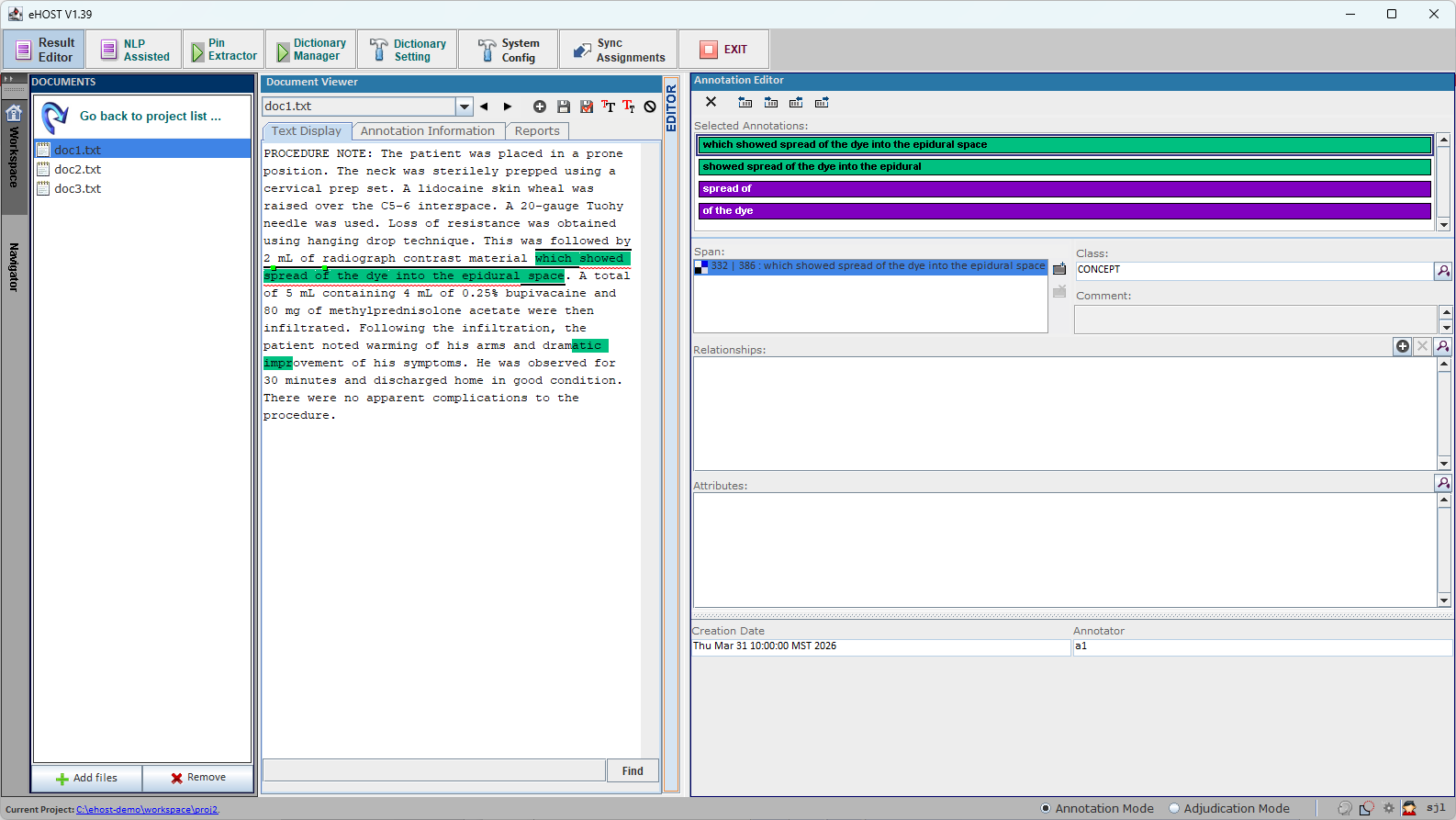

4. Annotate and save — 1.6 Create Annotations
5. Review and curate what has been annotated — 3.1 Annotation Review and Curation
6. Measure agreement between annotators — 3.5 IAA Reports
7. Adjudicate the disagreements into a gold standard — 3.6 Adjudication Mode

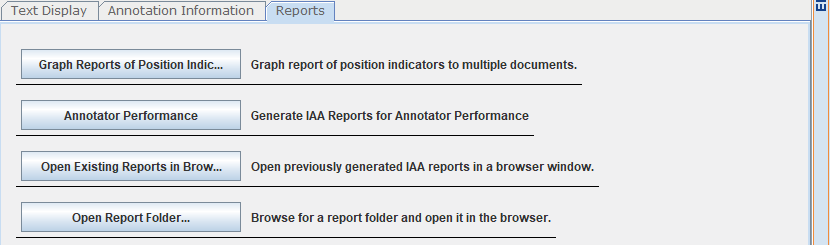

Reports are generated from the Reports tab of the Document Viewer:

Highlights in 1.39

See the full change log for details.

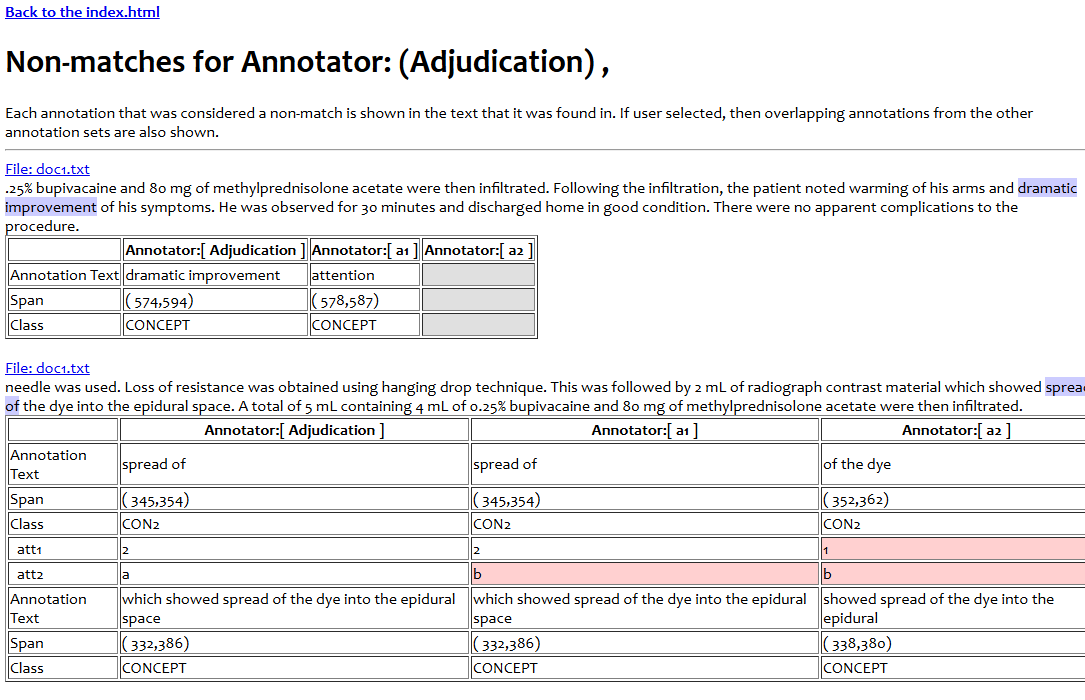

Adjudication comparison inside IAA reports

If the project already contains adjudicated annotations, the IAA report automatically loads them as an extra annotator called Adjudication and adds a section comparing every annotator against that gold standard. Attributes are compared row by row, and differing values are highlighted.

More: 3.5 IAA Reports

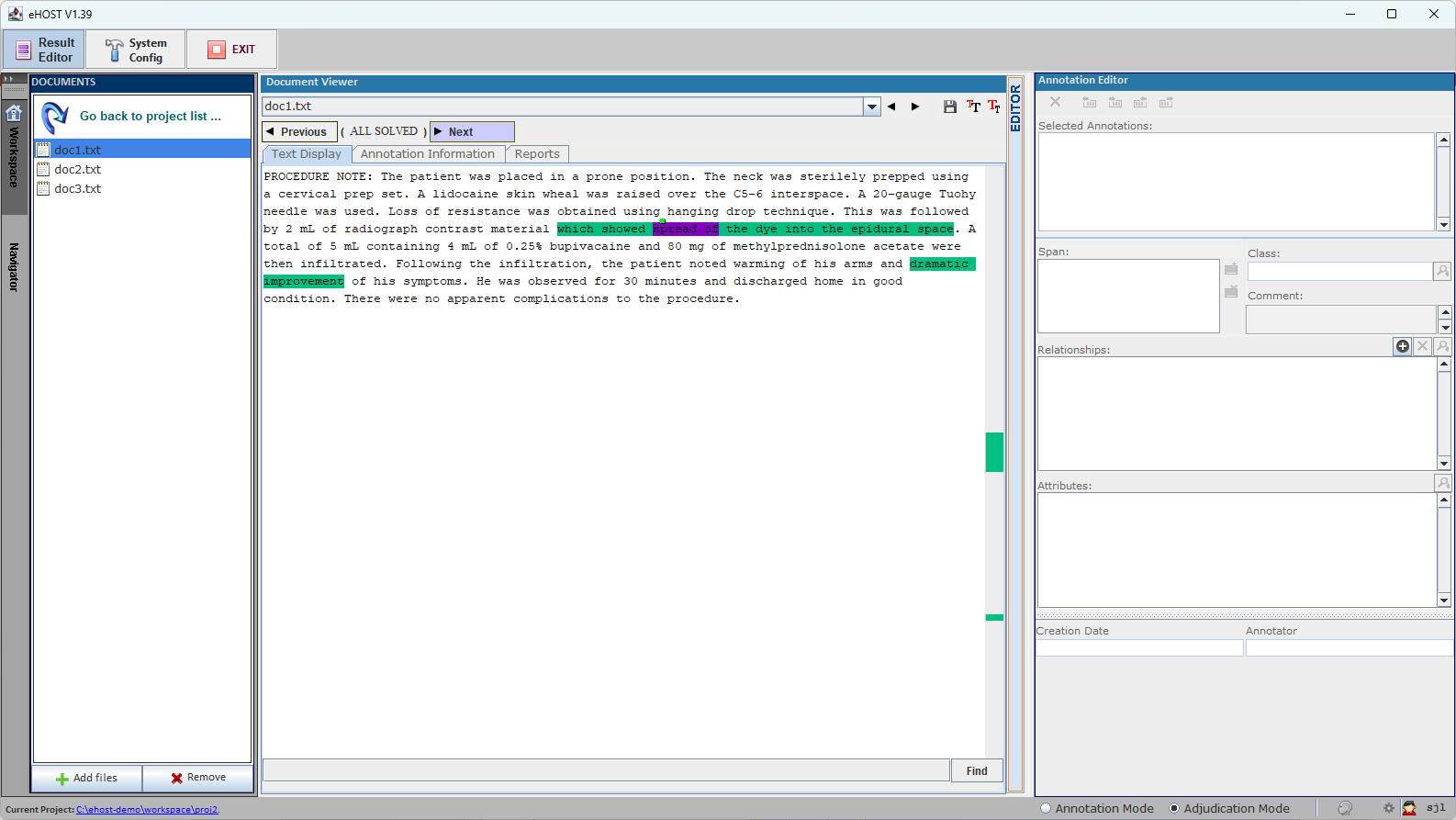

Adjudication you can pause, resume and restart safely

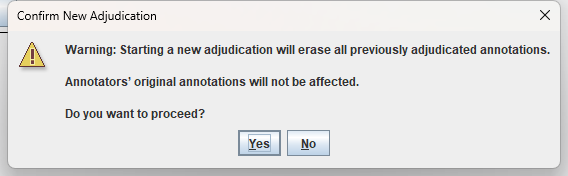

Adjudication state is stored in the project’s adjudication/ folder, so it survives closing eHOST. Re-entering Adjudication Mode asks whether to continue, and starting over requires confirming an explicit warning first.

eHOST also prompts you to save before switching between Annotation and Adjudication Mode, so mode switches can no longer silently discard work.

More: 3.6.1 Resume or Restart Adjudication · 3.6.2 Adjudication Data Storage

Reports served over HTTP, for shared installations

Reports are opened through eHOST’s own web server instead of file:// URIs. Every link inside a report is relative, so when several people share one eHOST installation each person’s clicks drive their own eHOST instance. A new Open Report Folder… button opens a report from any location on disk.

More: 3.7 Viewing and Sharing Reports · RESTful Server Guide

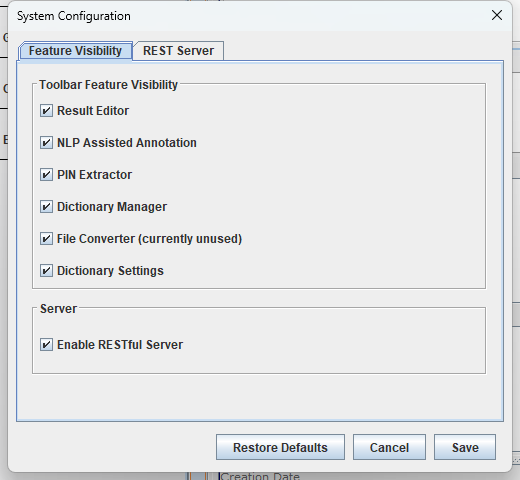

System Configuration dialog

Settings that used to require hand-editing eHOST.sys and application.properties can now be changed from the toolbar’s System Config button — which toolbar features are visible, whether the RESTful server runs, the server address, port and logging levels, and how annotation attributes are ordered and compared on screen.

More: 2.8 System Configuration

Quick start

1. Install Java. eHOST needs Java 8 or newer — see 1.1 Prerequisites.

2. Get eHOST. Download eHOST-<version>.zip from the releases page and unzip it anywhere.

3. Run it.

java -jar eHOST.jar

The bundled run.bat (Windows) and run (macOS/Linux) scripts do the same thing. You can also point eHOST at a specific workspace or configuration folder:

java -jar eHOST.jar -w /path/to/workspace -c /path/to/config

See 1.2 Launching eHOST for all command line options and for where eHOST looks for its configuration files.

Building from source instead? eHOST is a Maven project that must be built with JDK 8:

bash script/mvn_install_jar.sh   # script\mvn_install_jar.bat on Windows
mvn clean package                # produces target/deploy/eHOST.jar
